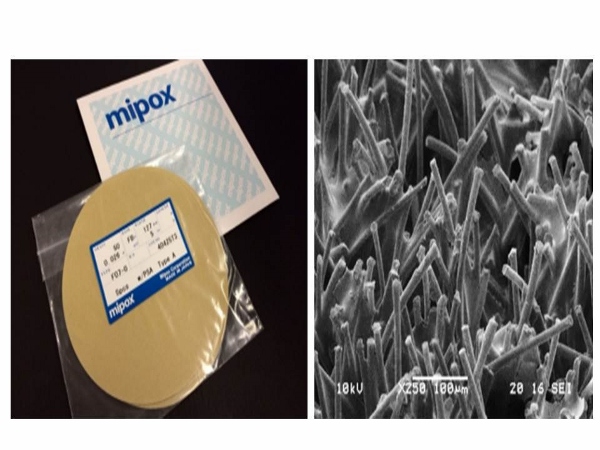

Final polishing film for the MT connector which coated nanosilica on the pile surface has been released.

2015-06-26 11:01:56 發表，點閱 2983 次

It is final polishing film for the MT connector which coated nanosilica on the pile surface.Because the chemical scouring with the conventional cerium abrasive did not occur, We can largely reduce core dip malfunction after final polish.





Step

Product ID

Lubricant

Pressure

Velocity

Time

Pad

(lb)

(rpm)

(sec)

1

Leveling-1

SC16-CF-P

DI-Water

2

120

45

Glass

2

Protrusion-1

SC3-DF

DI-Water

8

120

60

Glass

3

Protrusion-2

AA1-MFPS

DI-Water

9

140

90

Glass

4

Protrusion-3

Silica Flock

DI-Water

2.5

140

140

Glass

MFP610 flocked film without abrasive is used at final cleaning process.
